3/4" Drive 12 Pt Standard Hand Sockets - SAE

Warning: Wear safety goggles user and bystander

Warning: Tool safety info - Download Safety PDF

Warning: Comfort or plastic grips do not protect against electric shock.

Warning: Wear safety goggles user and bystander

Warning: Tool safety info - Download Safety PDF

Warning: Comfort or plastic grips do not protect against electric shock.

01

features & benefits

Features & benefits

- Patented Wright Drive® distributes contact over a larger surface area for greater gripping power and strength.
- Forged and Machined for Best Fit and Unyielding Strength
- Precision Heat-Treated and tempered for optimal hardness, ductility and durability
- Easy to read stamp pattern in order to quickly determine opening size
- Made in the USA, Designed, Engineered and Manufactured in Barberton, OH
- Meets and exceeds ASME B107 hand tool standards
02

products

part number
Country of Origin
Drive Size
Finish
Points
UOM
Nom. Size

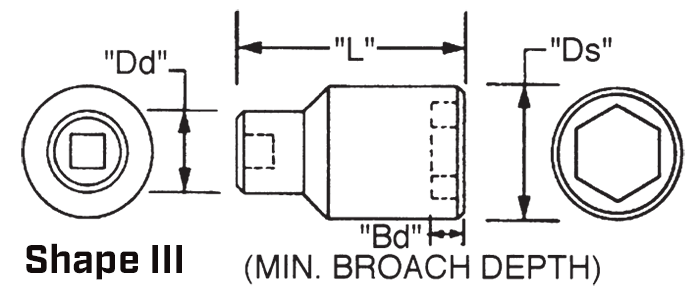

Shape
L
Ds
Dd
Bd
Part Number
6124
Country of Origin
UNITED STATES
Drive Size
3/4"
Finish
Full Polish
Points
12
UOM
SAE
Nom. Size
3/4"
Shape
III
L
2"
Ds
1-15/64"
Dd
1-19/64"
Bd
1/2"
part number 6124
Also Available in the following sets
Fractional Sockets, Handles & Attachments
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Part Number
6126
Country of Origin
UNITED STATES
Drive Size
3/4"
Finish
Full Polish
Points
12
UOM
SAE
Nom. Size
13/16"
Shape
II
L
2"
Ds
1-19/64"
Dd
1-19/64"
Bd
1/2"
part number 6126
Also Available in the following sets
Fractional Sockets, Handles & Attachments
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Part Number
6128
Country of Origin
UNITED STATES
Drive Size
3/4"
Finish
Full Polish
Points
12
UOM
SAE
Nom. Size
7/8"
Shape
II
L
2"
Ds
1-3/8"
Dd
1-3/8"
Bd
1/2"
part number 6128
Also Available in the following sets
Fractional Sockets, Handles & Attachments
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Master Fractional & Metric Set—1/4", 3/8", 1/2" & 3/4" Drives
Intermediate Set—1/4", 3/8", 1/2" & 3/4" Drives
Set 631 12 Pt. Standard Socket Set 31 Pc

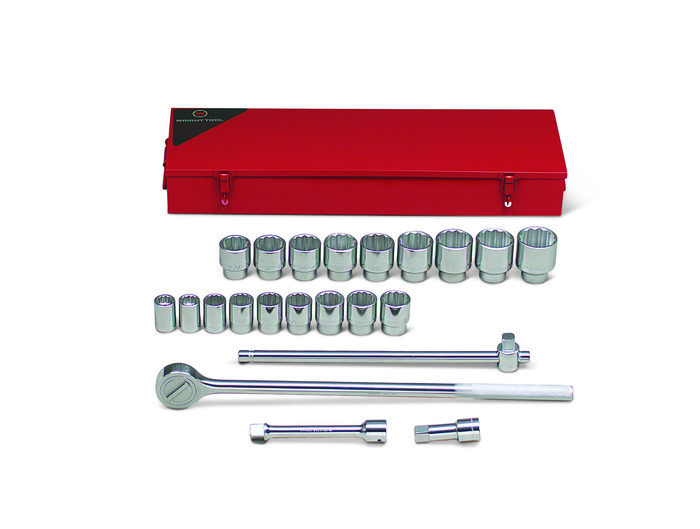

Set 623 12 Pt. Standard Socket Set 22 Pc
Set 422 12 Pt. Standard Socket Set 19 Pc

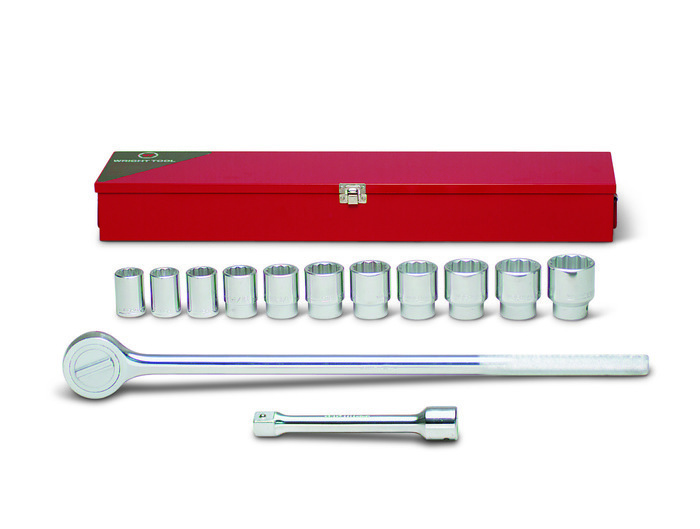

Set 330 12 Pt. Standard SAE Socket Set 13 Pc
Part Number
6130
Country of Origin
UNITED STATES
Drive Size
3/4"
Finish
Full Polish
Points
12
UOM
SAE
Nom. Size
15/16"
Shape
II
L
2"
Ds
1-13/32"
Dd
1-13/32"
Bd
35/64"
part number 6130
Also Available in the following sets
Fractional Sockets, Handles & Attachments
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Master Fractional & Metric Set—1/4", 3/8", 1/2" & 3/4" Drives
Intermediate Set—1/4", 3/8", 1/2" & 3/4" Drives
Set 631 12 Pt. Standard Socket Set 31 Pc
Set 623 12 Pt. Standard Socket Set 22 Pc
Set 422 12 Pt. Standard Socket Set 19 Pc
Set 330 12 Pt. Standard SAE Socket Set 13 Pc
Part Number
6132
Country of Origin
UNITED STATES
Drive Size
3/4"
Finish
Full Polish
Points
12
UOM
SAE
Nom. Size
1"
Shape
II
L
2-1/32"
Ds
1-15/32"
Dd
1-15/32"
Bd
1-1/32"
part number 6132
Also Available in the following sets
Fractional Sockets, Handles & Attachments
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Master Fractional & Metric Set—1/4", 3/8", 1/2" & 3/4" Drives
Intermediate Set—1/4", 3/8", 1/2" & 3/4" Drives
Set 631 12 Pt. Standard Socket Set 31 Pc
Set 623 12 Pt. Standard Socket Set 22 Pc
Set 422 12 Pt. Standard Socket Set 19 Pc
Set 330 12 Pt. Standard SAE Socket Set 13 Pc

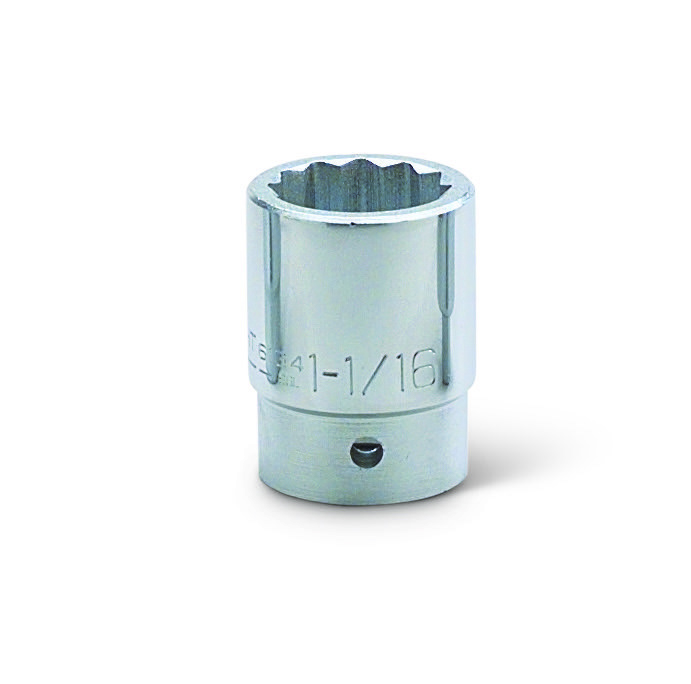

Part Number
6134
Country of Origin
UNITED STATES
Drive Size
3/4"
Finish
Full Polish
Points
12
UOM
SAE
Nom. Size
1-1/16"
Shape
III
L
2-1/16"
Ds
1-9/16"
Dd
1-29/64"
Bd
1-3/64"
part number 6134
Also Available in the following sets
Fractional Sockets, Handles & Attachments
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Master Fractional & Metric Set—1/4", 3/8", 1/2" & 3/4" Drives
Intermediate Set—1/4", 3/8", 1/2" & 3/4" Drives
Set 631 12 Pt. Standard Socket Set 31 Pc
Set 623 12 Pt. Standard Socket Set 22 Pc
Set 422 12 Pt. Standard Socket Set 19 Pc
Set 330 12 Pt. Standard SAE Socket Set 13 Pc
Part Number
6136
Country of Origin
UNITED STATES
Drive Size
3/4"
Finish
Full Polish
Points
12
UOM
SAE
Nom. Size
1-1/8"
Shape
III
L
2-1/8"
Ds
1-43/64"
Dd
1-29/64"
Bd
1-5/64"
part number 6136
Also Available in the following sets
Fractional Sockets, Handles & Attachments
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Master Fractional & Metric Set—1/4", 3/8", 1/2" & 3/4" Drives
Intermediate Set—1/4", 3/8", 1/2" & 3/4" Drives
Set 631 12 Pt. Standard Socket Set 31 Pc
Set 623 12 Pt. Standard Socket Set 22 Pc
Set 422 12 Pt. Standard Socket Set 19 Pc
Set 330 12 Pt. Standard SAE Socket Set 13 Pc
Part Number
6138
Country of Origin
UNITED STATES
Drive Size
3/4"
Finish
Full Polish
Points
12
UOM
SAE
Nom. Size
1-3/16"
Shape
III
L
2-1/8"
Ds
1-23/32"
Dd
1-29/64"
Bd
1-1/16"
part number 6138
Also Available in the following sets
Fractional Sockets, Handles & Attachments
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Set 631 12 Pt. Standard Socket Set 31 Pc
Set 623 12 Pt. Standard Socket Set 22 Pc
Part Number
6140
Country of Origin
UNITED STATES
Drive Size
3/4"
Finish
Full Polish
Points
12
UOM
SAE
Nom. Size
1-1/4"
Shape
III
L
2-3/16"
Ds
1-27/32"
Dd
1-37/64"
Bd
1-7/64"
part number 6140
Also Available in the following sets
Fractional Sockets, Handles & Attachments
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Master Fractional & Metric Set—1/4", 3/8", 1/2" & 3/4" Drives
Intermediate Set—1/4", 3/8", 1/2" & 3/4" Drives
Set 631 12 Pt. Standard Socket Set 31 Pc
Set 623 12 Pt. Standard Socket Set 22 Pc
Set 422 12 Pt. Standard Socket Set 19 Pc
Set 330 12 Pt. Standard SAE Socket Set 13 Pc
Part Number
6142
Country of Origin
UNITED STATES
Drive Size
3/4"
Finish
Full Polish
Points
12
UOM
SAE
Nom. Size
1-5/16"
Shape
III
L
2-1/4"
Ds
1-29/32"
Dd
1-37/64"
Bd
1-5/32"
part number 6142
Also Available in the following sets
Fractional Standard & Deep Sockets
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Master Fractional & Metric Set—1/4", 3/8", 1/2" & 3/4" Drives
Intermediate Set—1/4", 3/8", 1/2" & 3/4" Drives
Set 631 12 Pt. Standard Socket Set 31 Pc
Set 623 12 Pt. Standard Socket Set 22 Pc
Set 422 12 Pt. Standard Socket Set 19 Pc
Set 330 12 Pt. Standard SAE Socket Set 13 Pc
Part Number
6144
Country of Origin
UNITED STATES
Drive Size
3/4"
Finish
Full Polish
Points
12
UOM
SAE
Nom. Size
1-3/8"
Shape
III
L
2-1/4"
Ds
1-29/32"
Dd
1-37/64"
Bd
1-1/8"
part number 6144
Also Available in the following sets
Fractional Standard & Deep Sockets
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Master Fractional & Metric Set—1/4", 3/8", 1/2" & 3/4" Drives
Intermediate Set—1/4", 3/8", 1/2" & 3/4" Drives
Set 631 12 Pt. Standard Socket Set 31 Pc
Set 623 12 Pt. Standard Socket Set 22 Pc
Set 422 12 Pt. Standard Socket Set 19 Pc
Set 330 12 Pt. Standard SAE Socket Set 13 Pc
Part Number
6146
Country of Origin
UNITED STATES
Drive Size
3/4"
Finish
Full Polish
Points
12
UOM
SAE
Nom. Size
1-7/16"
Shape
III
L
2-5/16"
Ds
2-1/16"
Dd
1-37/64"
Bd
1-11/64"
part number 6146
Also Available in the following sets
Fractional Standard & Deep Sockets
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Master Fractional & Metric Set—1/4", 3/8", 1/2" & 3/4" Drives
Intermediate Set—1/4", 3/8", 1/2" & 3/4" Drives
Set 631 12 Pt. Standard Socket Set 31 Pc
Set 623 12 Pt. Standard Socket Set 22 Pc
Set 422 12 Pt. Standard Socket Set 19 Pc
Set 330 12 Pt. Standard SAE Socket Set 13 Pc
Part Number
6148
Country of Origin
UNITED STATES
Drive Size
3/4"
Finish
Full Polish
Points
12
UOM
SAE
Nom. Size
1-1/2"
Shape
III
L
2-5/16"
Ds
2-3/32"
Dd
1-39/64"
Bd
1-5/32"
part number 6148
Also Available in the following sets
Fractional Standard & Deep Sockets
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Master Fractional & Metric Set—1/4", 3/8", 1/2" & 3/4" Drives
Intermediate Set—1/4", 3/8", 1/2" & 3/4" Drives
Set 631 12 Pt. Standard Socket Set 31 Pc
Set 623 12 Pt. Standard Socket Set 22 Pc
Set 422 12 Pt. Standard Socket Set 19 Pc
Set 330 12 Pt. Standard SAE Socket Set 13 Pc
Part Number
6150
Country of Origin
UNITED STATES
Drive Size
3/4"
Finish
Full Polish
Points
12
UOM
SAE
Nom. Size
1-9/16"
Shape
III
L
2-7/16"
Ds
2-3/32"
Dd
1-39/64"
Bd
1-1/4"
part number 6150
Also Available in the following sets
Fractional Standard & Deep Sockets
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Set 631 12 Pt. Standard Socket Set 31 Pc
Set 623 12 Pt. Standard Socket Set 22 Pc
Part Number
6152
Country of Origin
UNITED STATES
Drive Size
3/4"
Finish
Full Polish
Points
12
UOM
SAE
Nom. Size
1-5/8"
Shape
III
L
2-1/2"
Ds
2-7/32"
Dd
1-39/64"
Bd
1-19/64"
part number 6152
Also Available in the following sets
Fractional Standard & Deep Sockets
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Master Fractional & Metric Set—1/4", 3/8", 1/2" & 3/4" Drives
Intermediate Set—1/4", 3/8", 1/2" & 3/4" Drives
Set 631 12 Pt. Standard Socket Set 31 Pc
Set 623 12 Pt. Standard Socket Set 22 Pc
Set 422 12 Pt. Standard Socket Set 19 Pc
Set 330 12 Pt. Standard SAE Socket Set 13 Pc
Part Number
6154
Country of Origin
UNITED STATES
Drive Size
3/4"
Finish
Full Polish
Points
12
UOM
SAE
Nom. Size
1-11/16"
Shape
III
L
2-1/2"
Ds
2-5/16"
Dd
1-5/8"
Bd
1-9/32"
part number 6154
Also Available in the following sets
Fractional Standard & Deep Sockets
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Master Fractional & Metric Set—1/4", 3/8", 1/2" & 3/4" Drives
Set 631 12 Pt. Standard Socket Set 31 Pc
Set 623 12 Pt. Standard Socket Set 22 Pc
Set 422 12 Pt. Standard Socket Set 19 Pc
Part Number
6156
Country of Origin
UNITED STATES
Drive Size
3/4"
Finish
Full Polish
Points
12
UOM
SAE
Nom. Size
1-3/4"
Shape
III
L
2-21/32"
Ds
2-25/64"
Dd
1-43/64"
Bd
1-13/32"
part number 6156
Also Available in the following sets
Fractional Standard & Deep Sockets
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Master Fractional & Metric Set—1/4", 3/8", 1/2" & 3/4" Drives
Intermediate Set—1/4", 3/8", 1/2" & 3/4" Drives
Set 631 12 Pt. Standard Socket Set 31 Pc
Set 623 12 Pt. Standard Socket Set 22 Pc
Set 422 12 Pt. Standard Socket Set 19 Pc
Part Number
6158
Country of Origin
UNITED STATES
Drive Size
3/4"
Finish
Full Polish
Points
12
UOM
SAE
Nom. Size
1-13/16"
Shape
III
L
2-13/16"
Ds
2-1/2"
Dd
1-3/4"
Bd
1-35/64"
part number 6158
Also Available in the following sets
Fractional Standard & Deep Sockets
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Master Fractional & Metric Set—1/4", 3/8", 1/2" & 3/4" Drives
Intermediate Set—1/4", 3/8", 1/2" & 3/4" Drives
Set 631 12 Pt. Standard Socket Set 31 Pc
Set 623 12 Pt. Standard Socket Set 22 Pc
Set 422 12 Pt. Standard Socket Set 19 Pc
Part Number
6160
Country of Origin
UNITED STATES
Drive Size
3/4"
Finish
Full Polish
Points
12
UOM
SAE
Nom. Size
1-7/8"
Shape
III
L
2-7/8"
Ds
2-19/32"
Dd
1-3/4"
Bd
1-37/64"
part number 6160
Also Available in the following sets
Fractional Standard & Deep Sockets
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Master Fractional & Metric Set—1/4", 3/8", 1/2" & 3/4" Drives
Intermediate Set—1/4", 3/8", 1/2" & 3/4" Drives
Set 631 12 Pt. Standard Socket Set 31 Pc
Set 623 12 Pt. Standard Socket Set 22 Pc
Set 422 12 Pt. Standard Socket Set 19 Pc
Part Number
6164
Country of Origin
UNITED STATES
Drive Size
3/4"
Finish
Full Polish
Points
12
UOM
SAE
Nom. Size
2"
Shape
III
L
3"
Ds
2-11/16"
Dd
1-3/4"
Bd
1-11/16"
part number 6164
Also Available in the following sets
Fractional Standard & Deep Sockets
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Master Fractional & Metric Set—1/4", 3/8", 1/2" & 3/4" Drives
Intermediate Set—1/4", 3/8", 1/2" & 3/4" Drives
Set 631 12 Pt. Standard Socket Set 31 Pc
Set 623 12 Pt. Standard Socket Set 22 Pc
Set 422 12 Pt. Standard Socket Set 19 Pc
Part Number
6166
Country of Origin
UNITED STATES
Drive Size
3/4"
Finish
Full Polish
Points
12
UOM
SAE
Nom. Size
2-1/16"
Shape
III
L
3-1/32"
Ds
2-47/64"
Dd
1-61/64"
Bd
1-45/64"
part number 6166
Also Available in the following sets
Fractional Standard & Deep Sockets
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Set 631 12 Pt. Standard Socket Set 31 Pc
Part Number
6168
Country of Origin
UNITED STATES
Drive Size
3/4"
Finish
Full Polish
Points
12
UOM
SAE
Nom. Size
2-1/8"
Shape
III
L
3-1/16"
Ds
2-55/64"
Dd
1-61/64"
Bd
1-23/32"
part number 6168
Also Available in the following sets
Fractional Standard & Deep Sockets
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Set 631 12 Pt. Standard Socket Set 31 Pc
Part Number
6170
Country of Origin
UNITED STATES
Drive Size
3/4"
Finish
Full Polish
Points
12
UOM
SAE
Nom. Size
2-3/16"
Shape
III
L
3-1/16"
Ds
2-55/64"
Dd
1-61/64"
Bd
1-11/16"
part number 6170
Also Available in the following sets
Fractional Standard & Deep Sockets
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Set 631 12 Pt. Standard Socket Set 31 Pc
Part Number
6172
Country of Origin
UNITED STATES
Drive Size
3/4"
Finish
Full Polish
Points
12
UOM
SAE
Nom. Size
2-1/4"
Shape
III
L
3-3/16"
Ds
3-1/32"
Dd
1-61/64"
Bd
1-51/64"
part number 6172
Also Available in the following sets
Fractional Standard & Deep Sockets
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Set 631 12 Pt. Standard Socket Set 31 Pc
Part Number
6176
Country of Origin
UNITED STATES
Drive Size
3/4"
Finish
Full Polish
Points
12
UOM
SAE
Nom. Size
2-3/8"
Shape
III
L
3-1/4"
Ds
3-1/32"
Dd
1-61/64"
Bd
2"
part number 6176
Also Available in the following sets
Fractional Standard & Deep Sockets
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Set 631 12 Pt. Standard Socket Set 31 Pc

wright drive 2.0 on board

The Wright Drive 2.0 design distributes contact stress more effectively than any other wrench system available. It spreads stress evenly over a larger contact area and away from the fastener corners.



learn more about wright drive 2.0

10x
more contact
than conventional 12-point designs
1.7x
more contact
than 2nd generation AS954 12-point
03

similar products

other products you might be interested in

3/4" Drive 6 Pt Deep Hand Sockets - SAE

click to view

3/4" Drive 12 Pt Standard Hand Sockets - Metric

click to view
or, view all products

WRIGHT CLUB JOIN UP

join the club

wright club

Sign up to join the Wright Club and receive email notifications about exclusive offers and insights into what we’re up to.
