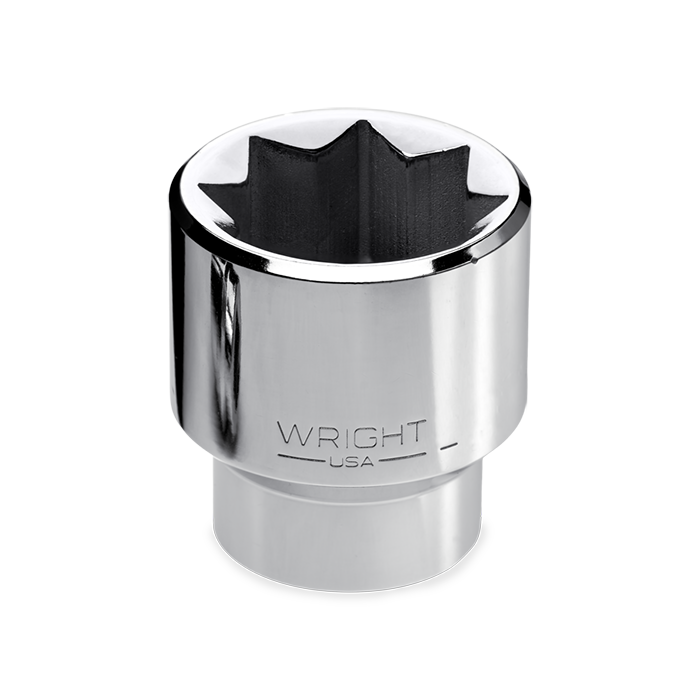

1/2" Drive 8 Pt Standard Hand Sockets - SAE

Warning: Wear safety goggles user and bystander

Warning: Tool safety info - Download Safety PDF

Warning: Comfort or plastic grips do not protect against electric shock.

Warning: Wear safety goggles user and bystander

Warning: Tool safety info - Download Safety PDF

Warning: Comfort or plastic grips do not protect against electric shock.

01

features & benefits

Features & benefits

- Patented Wright Drive® distributes contact over a larger surface area for greater gripping power and strength.
- Forged and Machined for Best Fit and Unyielding Strength
- Precision Heat-Treated and tempered for optimal hardness, ductility and durability
- Easy to read stamp pattern in order to quickly determine opening size
- Made in the USA, Designed, Engineered and Manufactured in Barberton, OH
- Meets and exceeds ASME B107 hand tool standards
02

products

part number
Drive Size
Country of Origin
Finish
Points
UOM
Nom. Size
Shape
L
Ds
Dd
Bd
Part Number
4312
Drive Size
1/2"
Country of Origin
UNITED STATES
Finish
Full Polish
Points
8
UOM
SAE
Nom. Size
3/8"
Shape
I
L
1-7/16"
Ds
47/64"
Dd
13/16"
Bd
5/32"
part number 4312
Also Available in the following sets
Fractional Standard & Deep Sockets
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Master Maintenance Set—1/4", 3/8" & 1/2" Drives
Part Number
4314
Drive Size
1/2"
Country of Origin
UNITED STATES
Finish
Full Polish
Points
8
UOM
SAE
Nom. Size
7/16"
Shape
II
L
1-7/16"
Ds
13/16"
Dd
13/16"
Bd
7/32"
part number 4314
Also Available in the following sets
Fractional Standard & Deep Sockets
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Master Maintenance Set—1/4", 3/8" & 1/2" Drives
Set 450 8 Pt. Standard Socket Set 13 Pc
Part Number
4316
Drive Size
1/2"
Country of Origin
UNITED STATES
Finish
Full Polish
Points
8
UOM
SAE
Nom. Size
1/2"
Shape
II
L
1-7/16"
Ds
7/8"
Dd
7/8"
Bd
17/64"
part number 4316
Also Available in the following sets
Fractional Standard & Deep Sockets
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Master Maintenance Set—1/4", 3/8" & 1/2" Drives
Set 450 8 Pt. Standard Socket Set 13 Pc
Part Number
4318
Drive Size
1/2"
Country of Origin
UNITED STATES
Finish
Full Polish
Points
8
UOM
SAE
Nom. Size
9/16"
Shape
II
L
1-7/16"
Ds
31/32"
Dd
31/32"
Bd
47/64"
part number 4318
Also Available in the following sets
Fractional Standard & Deep Sockets
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Master Maintenance Set—1/4", 3/8" & 1/2" Drives
Set 450 8 Pt. Standard Socket Set 13 Pc
Part Number
4320
Drive Size
1/2"
Country of Origin
UNITED STATES
Finish
Full Polish
Points
8
UOM
SAE
Nom. Size
5/8"
Shape
II
L
1-7/16"
Ds
1-1/16"
Dd
1-1/16"
Bd
23/32"
part number 4320
Also Available in the following sets
Fractional Standard & Deep Sockets
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Master Maintenance Set—1/4", 3/8" & 1/2" Drives
Set 450 8 Pt. Standard Socket Set 13 Pc
Part Number
4322
Drive Size
1/2"
Country of Origin
UNITED STATES
Finish
Full Polish
Points
8
UOM
SAE
Nom. Size
11/16"
Shape
II
L
1-7/16"
Ds
1-3/16"
Dd
1-3/16"
Bd
11/16"
part number 4322
Also Available in the following sets
Fractional Standard & Deep Sockets
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Master Maintenance Set—1/4", 3/8" & 1/2" Drives
Set 450 8 Pt. Standard Socket Set 13 Pc
Part Number
4324
Drive Size
1/2"
Country of Origin
UNITED STATES
Finish
Full Polish
Points
8
UOM
SAE
Nom. Size
3/4"
Shape
II
L
1-15/32"
Ds
1-1/4"
Dd
1-1/4"
Bd
11/16"
part number 4324
Also Available in the following sets
Fractional Standard & Deep Sockets
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Master Maintenance Set—1/4", 3/8" & 1/2" Drives
Set 450 8 Pt. Standard Socket Set 13 Pc
Part Number
4326
Drive Size
1/2"
Country of Origin
UNITED STATES
Finish
Full Polish
Points
8
UOM
SAE
Nom. Size
13/16"
Shape
II
L
1-9/16"
Ds
1-5/16"
Dd
1-5/16"
Bd
49/64"
part number 4326
Also Available in the following sets
Fractional Standard & Deep Sockets
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Master Maintenance Set—1/4", 3/8" & 1/2" Drives
Set 450 8 Pt. Standard Socket Set 13 Pc
Part Number
4328
Drive Size
1/2"
Country of Origin
UNITED STATES
Finish
Full Polish
Points
8
UOM
SAE
Nom. Size
7/8"
Shape
III
L
1-3/4"
Ds
1-13/32"
Dd
1-7/64"
Bd
7/8"
part number 4328
Also Available in the following sets
Fractional Standard & Deep Sockets
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Master Maintenance Set—1/4", 3/8" & 1/2" Drives
Set 450 8 Pt. Standard Socket Set 13 Pc
Part Number
4330
Drive Size
1/2"
Country of Origin
UNITED STATES
Finish
Full Polish
Points
8
UOM
SAE
Nom. Size
15/16"
Shape
III
L
1-7/8"
Ds
1-37/64"
Dd
1-7/64"
Bd
31/32"
part number 4330
Also Available in the following sets
Fractional Standard & Deep Sockets
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Set 450 8 Pt. Standard Socket Set 13 Pc
Part Number
4332
Drive Size
1/2"
Country of Origin
UNITED STATES
Finish
Full Polish
Points
8
UOM
SAE
Nom. Size
1"
Shape
III
L
1-15/16"
Ds
1-11/16"
Dd
1-7/64"
Bd
1"
part number 4332
Also Available in the following sets
Fractional Standard & Deep Sockets
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Mega Fractional & Metric Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Master Maintenance Set—1/4", 3/8" & 1/2" Drives
Set 450 8 Pt. Standard Socket Set 13 Pc
Part Number
4334
Drive Size
1/2"
Country of Origin
UNITED STATES
Finish
Full Polish
Points
8
UOM
SAE
Nom. Size
1-1/16"
Shape
III
L
1-15/16"
Ds
1-3/4"
Dd
1-7/64"
Bd
63/64"
part number 4334
Also Available in the following sets
Fractional Standard & Deep Sockets
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Set 450 8 Pt. Standard Socket Set 13 Pc
Part Number
4336
Drive Size
1/2"
Country of Origin
UNITED STATES
Finish
Full Polish
Points
8
UOM
SAE
Nom. Size
1-1/8"
Shape
III
L
2"
Ds
1-53/64"
Dd
1-1/4"
Bd
1-1/64"
part number 4336
Also Available in the following sets
Fractional Standard & Deep Sockets
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Set 450 8 Pt. Standard Socket Set 13 Pc
Part Number
4340
Drive Size
1/2"
Country of Origin
UNITED STATES
Finish
Full Polish
Points
8
UOM
SAE
Nom. Size
1-1/4"
Shape
III
L
2-1/8"
Ds
1-61/64"
Dd
1-1/4"
Bd
1-3/32"
part number 4340
Also Available in the following sets
Fractional Standard & Deep Sockets
Mega Fractional Master Set—1/4", 3/8", 1/2" & 3/4" Drives
Set 450 8 Pt. Standard Socket Set 13 Pc

wright drive 2.0 on board

The Wright Drive 2.0 design distributes contact stress more effectively than any other wrench system available. It spreads stress evenly over a larger contact area and away from the fastener corners.



learn more about wright drive 2.0

10x
more contact
than conventional 12-point designs
1.7x
more contact
than 2nd generation AS954 12-point
