Torque Multipliers

Warning: Wear safety goggles user and bystander

Warning: Tool safety info - Download Safety PDF

Warning: Comfort or plastic grips do not protect against electric shock.

Warning: Wear safety goggles user and bystander

Warning: Tool safety info - Download Safety PDF

Warning: Comfort or plastic grips do not protect against electric shock.

01

features & benefits

Features & benefits

- Low Input Torque. Needle Bearings for High Efficiency
- Input torque holding ratchet - holds multiplier in place during torqueing
- ±5% accuracy - closer accuracy and torque certificates available
- 1/2" square female input
- Sharable output squares - drive shear at 3-10% overload to protect tool. A replacement drive included, is easily installed
02

products

part number
Country of Origin
Input Internal Drive
Input Capacity Ft-Lbs
Output External Drive
Output Capacity Ft-Lbs
Torque Ratio
Angle of Turn Protractor
Replaceable Square

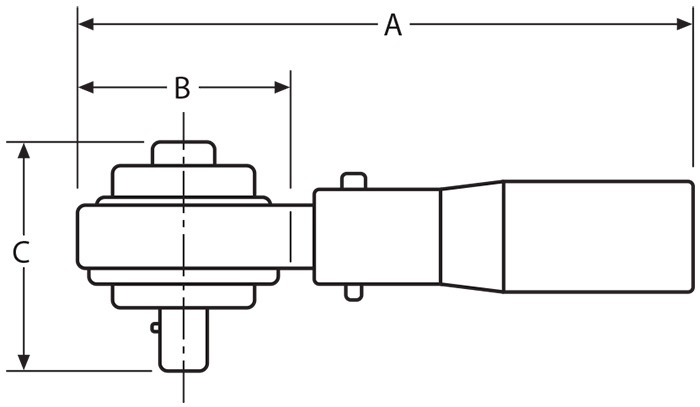

A-Length
B-Head Diameter
C-Height
Packaged Weight Lbs
Part Weight Lbs
Part Number
9S290P
Country of Origin
UNITED STATES
Input Internal Drive
1/2" SQ
Input Capacity Ft-Lbs
250
Output External Drive
3/4" SQ
Output Capacity Ft-Lbs
750
Torque Ratio
3.0:1
Angle of Turn Protractor
No
Replaceable Square
No
A-Length
8-1/2"
B-Head Diameter
2-13/16"
C-Height
3-1/4"
Packaged Weight Lbs
4.9
Part Weight Lbs
4.0
part number 9S290P
Part Number
9S291
Country of Origin
UNITED STATES
Input Internal Drive
1/2" SQ
Input Capacity Ft-Lbs
333
Output External Drive
3/4" SQ
Output Capacity Ft-Lbs
1,000
Torque Ratio
3.0:1
Angle of Turn Protractor
No
Replaceable Square
No
A-Length
17-1/16"
B-Head Diameter
2-13/16"
C-Height
3-1/4"
Packaged Weight Lbs
5.7
Part Weight Lbs
5.5
part number 9S291
Part Number
9S292
Country of Origin
UNITED STATES
Input Internal Drive
3/4" SQ
Input Capacity Ft-Lbs
533
Output External Drive
1" SQ
Output Capacity Ft-Lbs
2,000
Torque Ratio
3.75:1
Angle of Turn Protractor
No
Replaceable Square
No
A-Length
19-1/2"
B-Head Diameter
4-1/2"
C-Height
3-3/4"
Packaged Weight Lbs
13.9
Part Weight Lbs
12.0
part number 9S292
Part Number
9S391
Country of Origin
UNITED STATES
Input Internal Drive
1/2" SQ
Input Capacity Ft-Lbs
200
Output External Drive
3/4" SQ
Output Capacity Ft-Lbs
1,200
Torque Ratio
6.0:1
Angle of Turn Protractor
Yes
Replaceable Square
9S391RS
A-Length
19-9/16"
B-Head Diameter
4"
C-Height
4"
Packaged Weight Lbs
13.8
Part Weight Lbs
9.1
part number 9S391
Part Number
9S392B
Country of Origin
UNITED STATES
Input Internal Drive
1/2" SQ
Input Capacity Ft-Lbs
182
Output External Drive
1" SQ
Output Capacity Ft-Lbs
2,200
Torque Ratio
13.6:1
Angle of Turn Protractor
Yes
Replaceable Square
9S392RS
A-Length
19-9/16"
B-Head Diameter
4-1/16"
C-Height
5-3/4"
Packaged Weight Lbs
20.2
Part Weight Lbs
15.2
part number 9S392B
Part Number
9S393A
Country of Origin
UNITED STATES
Input Internal Drive
1/2" SQ
Input Capacity Ft-Lbs
173
Output External Drive
1" SQ
Output Capacity Ft-Lbs
2200
Torque Ratio
13.6:1
Angle of Turn Protractor
Yes
Replaceable Square
9S393RS
A-Length
19-9/16"
B-Head Diameter
4-1/16"
C-Height
5-3/4"
Packaged Weight Lbs
20.2
Part Weight Lbs
18.3
part number 9S393A
