1/2" Drive 6 Pt Deep Impact Sockets - SAE & Metric

Warning: Wear safety goggles user and bystander

Warning: Tool safety info - Download Safety PDF

Warning: Comfort or plastic grips do not protect against electric shock.

Warning: Wear safety goggles user and bystander

Warning: Tool safety info - Download Safety PDF

Warning: Comfort or plastic grips do not protect against electric shock.

Features & benefits

- Patented Wright Drive® design distributes contact over a larger surface area for greater gripping power and strength. Oiled Black Oxide finish
- Forged and Machined for Best Fit and Unyielding Strength
- Precision Heat-Treated and tempered for optimal hardness, ductility and durability
- Easy to read stamp pattern in order to quickly determine opening size
- Made in the USA. Designed, Engineered and Manufactured in Barberton, OH
- Meets and exceeds ASME B107 hand tool standards

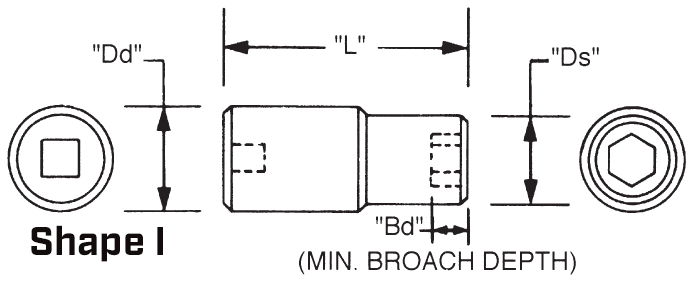

Diagram - I

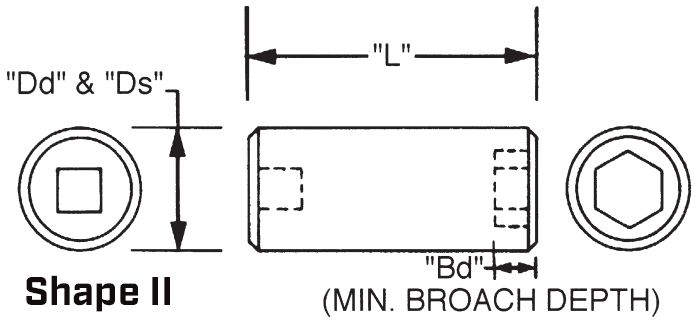

Diagram - II

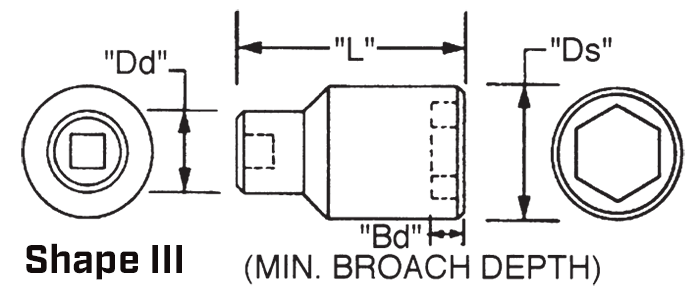

Diagram - III

part number
Drive Size
Country of Origin
UOM
Points
Finish
Nom. Size
Ret Ring
Shape
L
Ds
Dd
Bd
Part Number
49-10mm
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
Metric
Points
6
Finish
Black Oxide
Nom. Size
10mm
Shape
I
L
82.55
Ds
17.06
Dd
23.81
Bd
7.94
Part Number
49-11mm
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
Metric
Points
6
Finish
Black Oxide
Nom. Size
11mm
Shape
I
L
82.55
Ds
18.26
Dd
23.81
Bd
7.14
Part Number
49-12mm
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
Metric
Points
6
Finish
Black Oxide
Nom. Size
12mm
Shape
I
L
82.55
Ds
19.86
Dd
23.81
Bd
8.33
Part Number
49-13mm
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
Metric
Points
6
Finish
Black Oxide
Nom. Size
13mm
Shape
I
L
82.55
Ds
20.64
Dd
23.81
Bd
8.33
Part Number
49-14mm
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
Metric
Points
6
Finish
Black Oxide
Nom. Size
14mm
Shape
I
L
82.55
Ds
22.23
Dd
24.6
Bd
10.32
Part Number
49-15mm
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
Metric
Points
6
Finish
Black Oxide
Nom. Size
15mm
Shape
II
L
82.55
Ds
24.6
Dd
24.6
Bd
10.32
Part Number
49-16mm
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
Metric
Points
6
Finish
Black Oxide
Nom. Size
16mm
Shape
II
L
82.55
Ds
25.4
Dd
25.4
Bd
11.9
Part Number
49-17mm
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
Metric
Points
6
Finish
Black Oxide
Nom. Size
17mm
Shape
II
L
82.55
Ds
26.59
Dd
26.59
Bd
12.29
Part Number
49-18mm
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
Metric
Points
6
Finish
Black Oxide
Nom. Size
18mm
Shape
II
L
82.55
Ds
27.76
Dd
27.76
Bd
64.72
Part Number
49-19mm
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
Metric
Points
6
Finish
Black Oxide
Nom. Size
19mm
Shape
II
L
82.55
Ds
29.36
Dd
29.36
Bd
64.05
Part Number
49-20mm
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
Metric
Points
6
Finish
Black Oxide
Nom. Size
20mm
Shape
II
L
82.55
Ds
30.16
Dd
30.16
Bd
63.72
Part Number
49-21mm
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
Metric
Points
6
Finish
Black Oxide
Nom. Size
21mm
Shape
II
L
82.55
Ds
31.75
Dd
31.75
Bd
63.38
Part Number
49-22mm
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
Metric
Points
6
Finish
Black Oxide
Nom. Size
22mm
Shape
II
L
82.55
Ds
32.54
Dd
32.54
Bd
69.4
part number 49-22mm
Also Available in the following sets
Part Number
49-23mm
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
Metric
Points
6
Finish
Black Oxide
Nom. Size
23mm
Shape
II
L
88.9
Ds
34.14
Dd
34.14
Bd
69.07
part number 49-23mm
Also Available in the following sets
Part Number
49-24mm
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
Metric
Points
6
Finish
Black Oxide
Nom. Size
24mm
Shape
II
L
88.9
Ds
35.31
Dd
35.31
Bd
68.73
part number 49-24mm
Also Available in the following sets
Part Number
49-27mm
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
Metric
Points
6
Finish
Black Oxide
Nom. Size
27mm
Shape
III
L
88.9
Ds
38.1
Dd
34.93
Bd
67.43
part number 49-27mm
Also Available in the following sets
Part Number
49-29mm
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
Metric
Points
6
Finish
Black Oxide
Nom. Size
29mm
Shape
III
L
88.9
Ds
41.26
Dd
34.93
Bd
66.76
part number 49-29mm
Also Available in the following sets
Part Number
49-30mm
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
Metric
Points
6
Finish
Black Oxide
Nom. Size
30mm
Shape
III
L
88.9
Ds
42.88
Dd
34.93
Bd
66.43
part number 49-30mm
Also Available in the following sets
Part Number
49-31mm
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
Metric
Points
6
Finish
Black Oxide
Nom. Size
31mm
Shape
III
L
88.9
Ds
44.45
Dd
34.93
Bd
66.43
part number 49-31mm
Part Number
49-32mm
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
Metric
Points
6
Finish
Black Oxide
Nom. Size
32mm
Shape
III
L
88.9
Ds
44.45
Dd
34.93
Bd
65.76
part number 49-32mm
Also Available in the following sets
Part Number
49-34mm
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
Metric
Points
6
Finish
Black Oxide
Nom. Size
34mm
Shape
III
L
88.9
Ds
51.18
Dd
34.93
Bd
65.1
part number 49-34mm
Also Available in the following sets
Part Number
49-35mm
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
Metric
Points
6
Finish
Black Oxide
Nom. Size
35mm
Shape
III
L
88.9
Ds
52.37
Dd
38.88
Bd
64.76
part number 49-35mm
Also Available in the following sets
Part Number
49-36mm
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
Metric
Points
6
Finish
Black Oxide
Nom. Size
36mm
Shape
III
L
88.9
Ds
52.37
Dd
38.88
Bd
64.43
part number 49-36mm
Also Available in the following sets
Part Number
4912
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
SAE
Points
6
Finish
Black Oxide
Nom. Size
3/8"
Shape
I
L
3-1/4"
Ds
21/32"
Dd
15/16"
Bd
5/32"
Part Number
4914
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
SAE
Points
6
Finish
Black Oxide
Nom. Size
7/16"
Shape
I
L
3-1/4"
Ds
23/32"
Dd
15/16"
Bd
7/32"
Part Number
4916
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
SAE
Points
6
Finish
Black Oxide
Nom. Size
1/2"
Shape
I
L
3-1/4"
Ds
51/64"
Dd
15/16"
Bd
17/64"
Part Number
4918
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
SAE
Points
6
Finish
Black Oxide
Nom. Size
9/16"
Shape
I
L
3-1/4"
Ds
7/8"
Dd
31/32"
Bd
21/64"
Part Number
4920
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
SAE
Points
6
Finish
Black Oxide
Nom. Size
5/8"
Shape
II
L
3-1/4"
Ds
1"
Dd
1"
Bd
3/8"
Part Number
4922
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
SAE
Points
6
Finish
Black Oxide
Nom. Size
11/16"
Shape
II
L
3-1/4"
Ds
1-1/16"
Dd
1-1/16"
Bd
2-35/64"
Part Number
4924
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
SAE
Points
6
Finish
Black Oxide
Nom. Size
3/4"
Shape
II
L
3-1/4"
Ds
1-5/32"
Dd
1-5/32"
Bd
2-17/32"
Part Number
4926
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
SAE
Points
6
Finish
Black Oxide
Nom. Size
13/16"
Shape
II
L
3-1/4"
Ds
1-15/64"
Dd
1-15/64"
Bd
2-1/2"
Part Number
4928
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
SAE
Points
6
Finish
Black Oxide
Nom. Size
7/8"
Shape
II
L
3-1/4"
Ds
1-5/16"
Dd
1-5/16"
Bd
2-3/4"
Part Number
4930
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
SAE
Points
6
Finish
Black Oxide
Nom. Size
15/16"
Shape
II
L
3-1/4"
Ds
1-3/8"
Dd
1-3/8"
Bd
2-27/32"
Part Number
4932
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
SAE
Points
6
Finish
Black Oxide
Nom. Size
1"
Shape
II
L
3-1/2"
Ds
1-7/16"
Dd
1-7/16"
Bd
2-45/64"
Part Number
4934
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
SAE
Points
6
Finish
Black Oxide
Nom. Size
1-1/16"
Shape
III
L
3-1/2"
Ds
1-1/2"
Dd
1-3/8"
Bd
2-21/32"
Part Number
4936
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
SAE
Points
6
Finish
Black Oxide
Nom. Size
1-1/8"
Shape
III
L
3-1/2"
Ds
1-5/8"
Dd
1-3/8"
Bd
2-5/8"
Part Number
4938
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
SAE
Points
6
Finish
Black Oxide
Nom. Size
1-3/16"
Shape
III
L
3-1/2"
Ds
1-3/4"
Dd
1-3/8"
Bd
2-19/32"
part number 4938
Part Number
4940
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
SAE
Points
6
Finish
Black Oxide
Nom. Size
1-1/4"
Shape
III
L
3-1/2"
Ds
1-3/4"
Dd
1-3/8"
Bd
2-19/32"
Part Number
4942
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
SAE
Points
6
Finish
Black Oxide
Nom. Size
1-5/16"
Shape
III
L
3-5/8"
Ds
2-1/64"
Dd
1-3/8"
Bd
2-9/16"
part number 4942
Also Available in the following sets
Part Number
4944
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
SAE
Points
6
Finish
Black Oxide
Nom. Size
1-3/8"
Shape
III
L
3-5/8"
Ds
2-1/16"
Dd
1-17/32"
Bd
2-35/64"
part number 4944
Also Available in the following sets
Part Number
4946
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
SAE
Points
6
Finish
Black Oxide
Nom. Size
1-7/16"
Shape
III
L
3-5/8"
Ds
2-5/32"
Dd
1-17/32"
Bd
2-17/32"
part number 4946
Also Available in the following sets
Part Number
4948
Drive Size
1/2"
Country of Origin
UNITED STATES
UOM
SAE
Points
6
Finish
Black Oxide
Nom. Size
1-1/2"
Shape
III
L
3-5/8"
Ds
2-15/64"
Dd
1-17/32"
Bd
2-1/2"
part number 4948
Also Available in the following sets

wright drive 2.0 on board

The Wright Drive 2.0 design distributes contact stress more effectively than any other wrench system available. It spreads stress evenly over a larger contact area and away from the fastener corners.



learn more about wright drive 2.0

10x
more contact
than conventional 12-point designs
1.7x
more contact
than 2nd generation AS954 12-point

other products you might be interested in

1/2" Drive 8 Pt (Double Square) Deep Impact Sockets - SAE

1/2" Drive 6 Pt Standard Impact Sockets - SAE & Metric

1/2" Drive 12 Pt Standard Impact Sockets - SAE

1/2" Drive 12 Pt Deep Impact Sockets - SAE

1/2" Drive 5 Pt Black Penta Impact Socket

or, view all products

WRIGHT CLUB JOIN UP

join the club

wright club

Sign up to join the Wright Club and receive email notifications about exclusive offers and insights into what we’re up to.
